# IF ERGOLITE

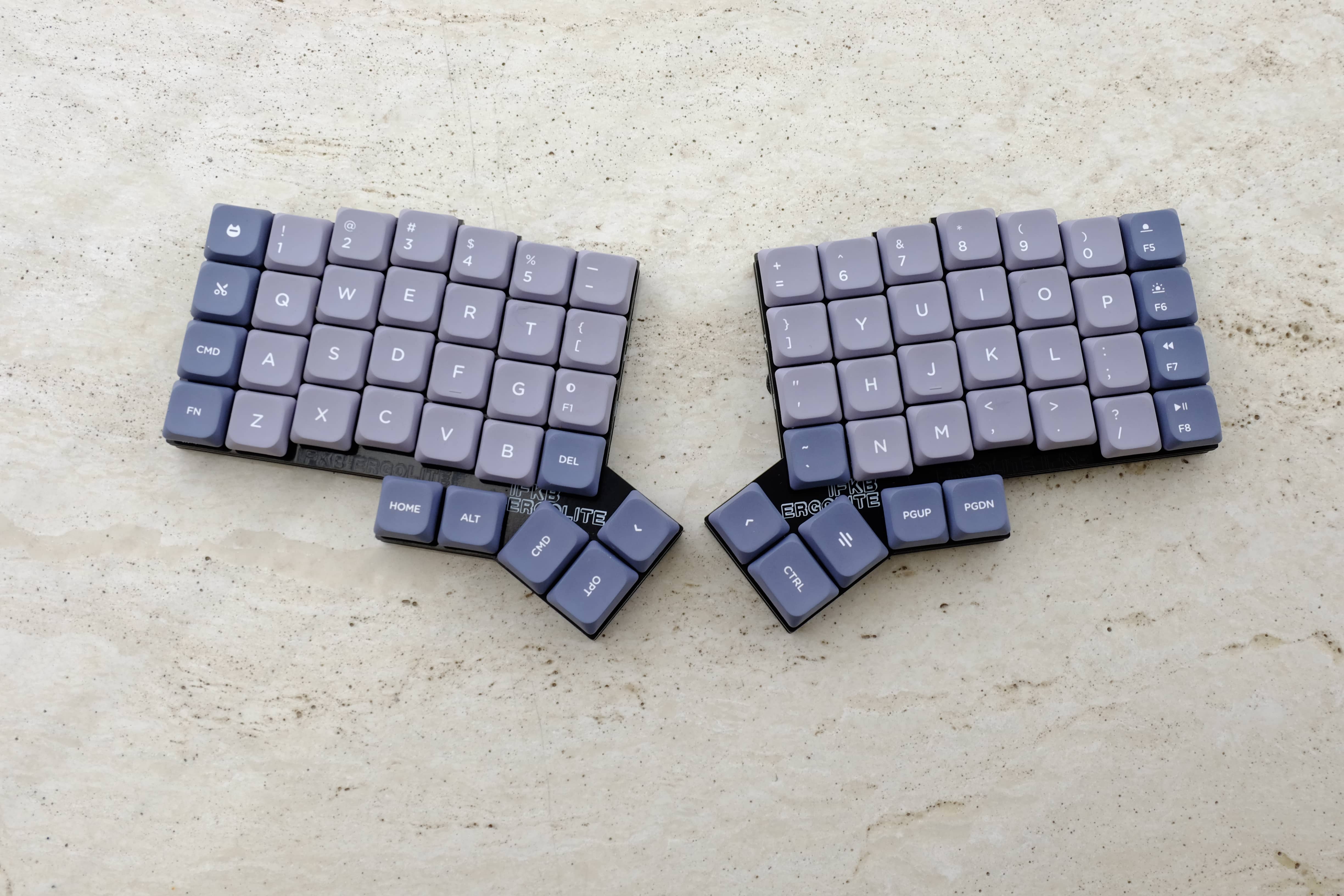

<figure><img src="https://385242154-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnKEYHvvdjyFhBokhnRcl%2Fuploads%2Fjo5u4BYHI95Ls2dGC7vb%2FO1CN01bvHf8d1jUPJ76TbAN_!!178314551.jpg?alt=media&#x26;token=9620f795-48cf-47b3-9f14-b549ad15302d" alt=""><figcaption><p>Designed in 2022</p></figcaption></figure>

<figure><img src="https://385242154-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnKEYHvvdjyFhBokhnRcl%2Fuploads%2FdvrjyOVcfLdNr06W1Zgd%2F%60LLCT%5B%5DO%7D%60%25K1I483NX%5B%2428.png?alt=media&#x26;token=94de8024-8209-47fa-b139-f7729ef03611" alt=""><figcaption></figcaption></figure>

**1.Only 2.4g wireless is supported .**\
-Exclusive support for 3-channel switching (requires 3 receivers,like Bluetooth). Comes with one 2.4g receiver -There are no cables between the split keyboards, but the receiver needs to be plugged into the computer

**2.！！hot swappable switchs design, -！！support 3 and 5 pin MX switches（bottom socket ） -！！also support&#x20;**<mark style="color:red;">**Gateron Low Profile switches**</mark>**（top socket ）**

**3.Vial programmable with 4 layers , via is not supported. -It includes Macros, Tap Dance, Combos, key Overrides, qmk setting and other functional modules(all functional modules in vial)**

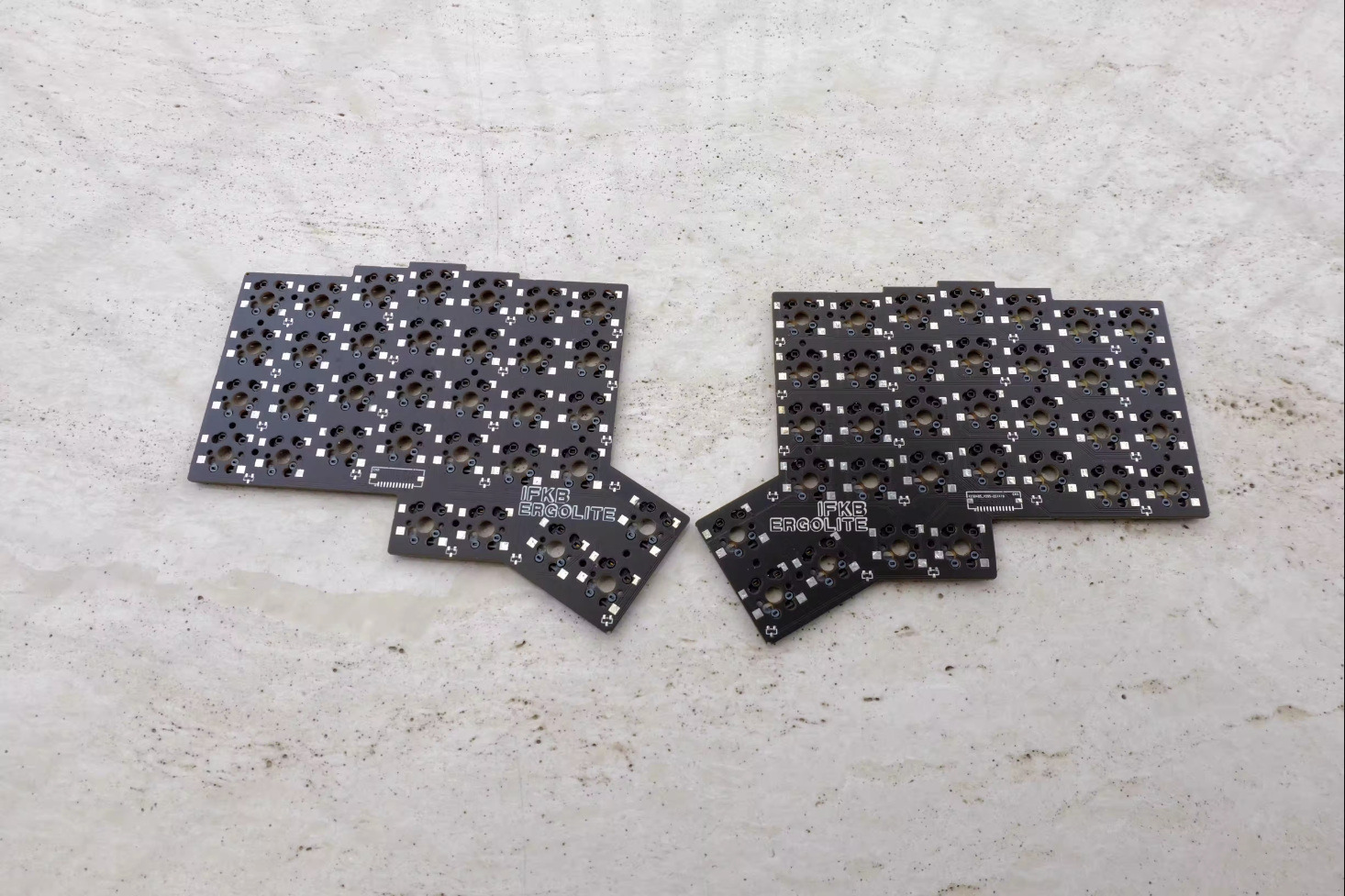

**4.FR4 Case Kit, 1.2MM top plate, 1.6MM bottom plate ,1.6MM PCB**

**5.Rechargeable,ultra-low power consumption, and long battery life -450mah Lithium battery（About 2.5 months battery life）**

**6.No lights**

**7.Pre-soldered**

**8.switches and keycaps are not included -！！MX switches or&#x20;**<mark style="color:red;">**Gateron Low Profile switches**</mark><mark style="background-color:red;">**（not CHOC）**</mark>**&#x20;-！！Gateron Low Profile switches Recommend Nuphy's keycaps -Only switches and keycaps need to be installed(hot swappable)**&#x20;

-key sizes summary&#x20;

1\**1              62*&#x20;

*1\**&#x31;.25          4&#x20;

Total 66

**9.Item list** &#x20;

left and right handed keyboard \*1&#x20;

2.4g receiver \*1&#x20;

USB Type-C cable \*1&#x20;

Non-slip foot mat \*1
